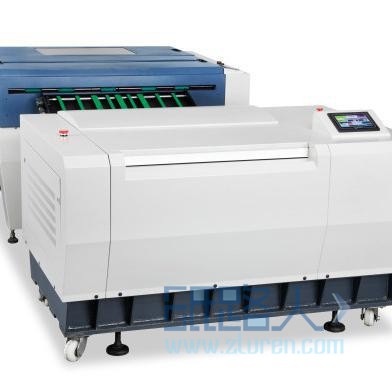

“福莱鑫”YP-800型、CTP直接制版机、Uv直接制版机、CtCp直接制版机








                                接构形式：外鼓滚筒式



                                印版尺寸：最大1130x810mm，最小450x400mm



                                扫描精度：2400DPI



                                光路数：32路、48路、64路、96路



                                成像速率：16/21/27/35张/小时



                                曝光光源：波长405nm



                                工作方式：明室手动放版,连续出版，连线冲版



                                可用版材：CTcP版材，UvCTP版，传统PS版



                                版材厚度：0.15-0.3mm



                                操作环境：温度25度+-2度



                                电源功率：单相220V/50-60Hz，功率：6KW
